Edit Command Cuts

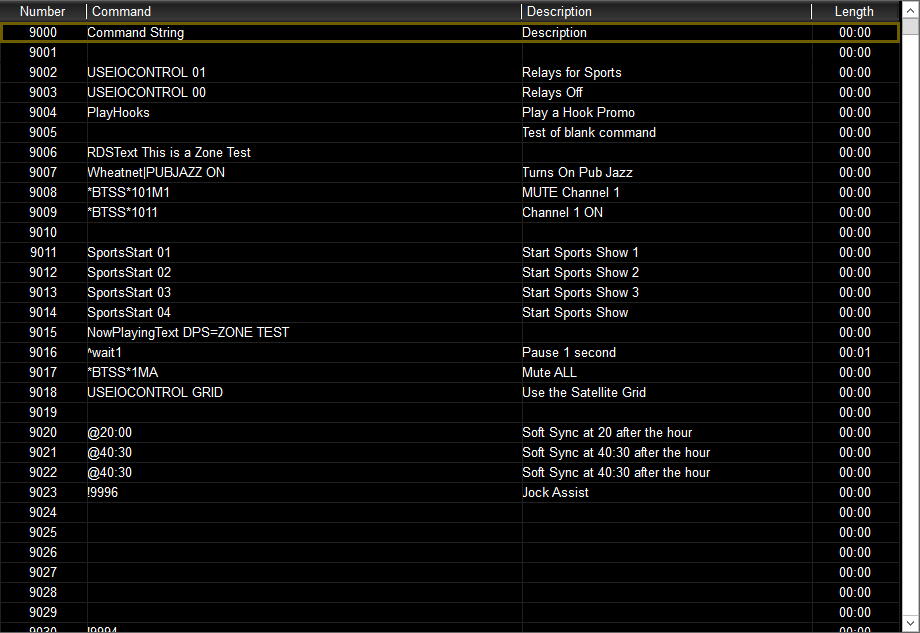

Command List

This is where you can edit User Commands from number 9000 to 9199. There are also system commands from 9200-9999

9201-9220 Stopset Commands used when importing from external traffic.

9301-9316 Pulse Output Relays 1-16

9401-9416 Turn ON Output Relays 1-16

9501-9516 Turn OFF Output Relays 1-16

9600 Scheduled Voice Track

9601 Internet Voice Track

9800 Turn ALL Inputs OFF

9801 Turn ALL Inputs ON

9990 Announce The Time

9991 Announce The Temperature

9993 Music Slot for Importing External Music

9994 Automated Mode

9996 Jock Assist Mode

9999 Hourly Time Update - This should be the last event in each schedule hour.

After you click on a Command Cut number you can edit the exisiting text or create a new command in this box.

After you make any changes, click the Save Changes button.

After any change to the Command String or Description, click this to save your changes.

After you have made changes and clicked Save, click Exit to close the Command Cut Editor

Shell Duration allows you to add a length to command cuts so the schedule will accurately reflect the day.

So if you have a command that fires a 30 second event, you can set the Duration to 00:30 and the schedule will calculate based on that timing.
