Build An Hourly Template & Fill A Grid

The [MENU] [Program Settings] [Scheduling Tab] settings reflect the [Weekly Template Scheduler]

page as illustrated in Figure 1.

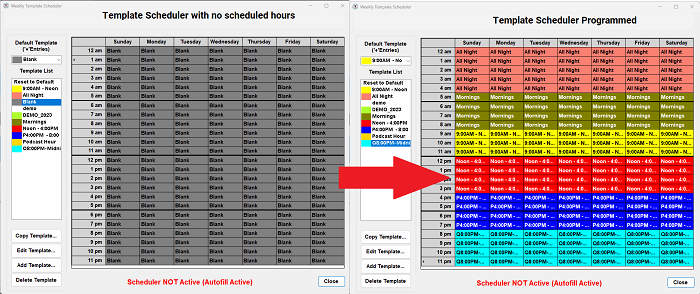

Figure 1: The transition of a BLANK template to a Programmed Template.

To open the [Weekly Template Scheduler] go to the DJB Studio Player bottom row of buttons as below.

CLICK the button and the [Weekly Template Scheduler] page appears.

Note: The Weekly Template Scheduler requires the MAIN & SUB Tabs to have imported music & audio.

This section shall guide users to fill the Daily Weekly Template Scheduler.

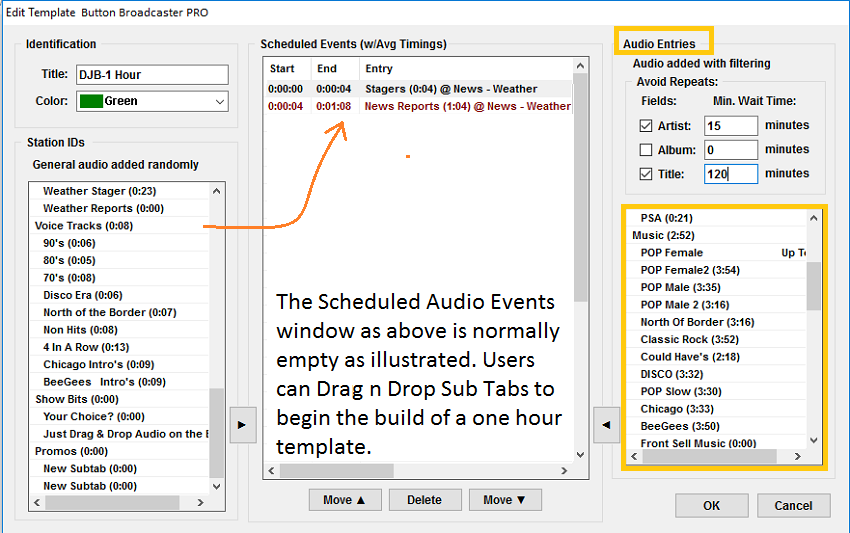

Figure 2: illustrates Drag n Drop of Station ID's, news, Promos into the Scheduled Events window.

Note: As SUB TAB's are added, the Start Time begins to calculate the average time of the audio items in that Tab.

Station ID's General Audio Added Randomly - displays MAIN Tabs / SUB Tabs and the

average audio item length of the audio assets.

Note: The opposite side under Audio Entries shows the same audio MAIN or SUB Tabs except with added

Rest Rules for non repeats in the time period.

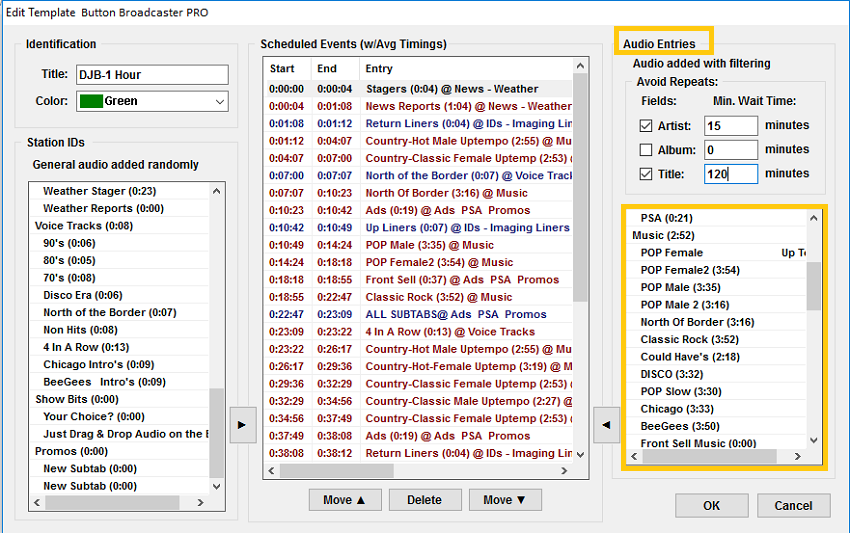

Figure 3: Illustrates the Scheduled Events Window with Sub Tabs arranged as follows:

0:00:00 SUB TAB Stager - MAIN TAB News & Weather (4 sec)

0:00:04 SUB TAB News Report - MAIN TAB News & Weather (1:04 runtime) is next End time is 1:08

(it adds the added audio)

0:01:08 Note the addition of the runtime - next, Return Liner - ID's - Imaging (.04 sec)

0:01:12 Country-Hot Male Uptempo - Music (2:55)

0:04:07 Next - and so on

Build the template until there is over 1 Hour (or as close as possible to 1 Hour) worth of average time from

SUB Tabs selected

Note: Information about audio with Rest Rules and Audio without
Station IDs General Audio window will Drag n Drop SUB or MAIN Tabs without any Rest Rules

(Same audio could play back to back)
SUB or MAIN Tabs Drag n Drop from right side Audio Entries will operate under the Rest Rules stated
The added Start Time plus audio item Runtime of each line entry (add till the hour "60" minutes is built)
Audio Entries w/Rest Rules - SUB Tabs that can have rest rules (Avoid Repeats) for the music based on

Artist, Title & Album.
Note: The Avoid Repeats (rest rule period) is user adjustable. The "Artist No Repeat" is most used.

Note 2: The Audio Entries SUB Tabs selected can have Rest Rules that can apply to each

Example ie., no repeat Artist 15 minutes and Titles every 120 minutes.

These settings are one setting for all SUB Tabs Drag n Dropped into Scheduled Events window

Building a typical hour from Categories and Specific Audio Items.

Figure 4: Continuation of Hour Templates

Scheduled Events (w/Average Timing) Display (See illustration Pop Male (3:41))
This Scheduled Events window starts from a NEW Template as empty of any SUB Tabs in it
Next to be used are SUB Tabs or MAIN Tabs in the building process of an hour template
Since DJB Studio does the selectiion of the actual music items in a SUB or MAIN Tab,
Drag n Drop a SUB Tab from the General Audio or from the Audio Entries item selected
TABS are Drag n Drop from Station IDs General Audio or Audio Entries into the Scheduled Events.

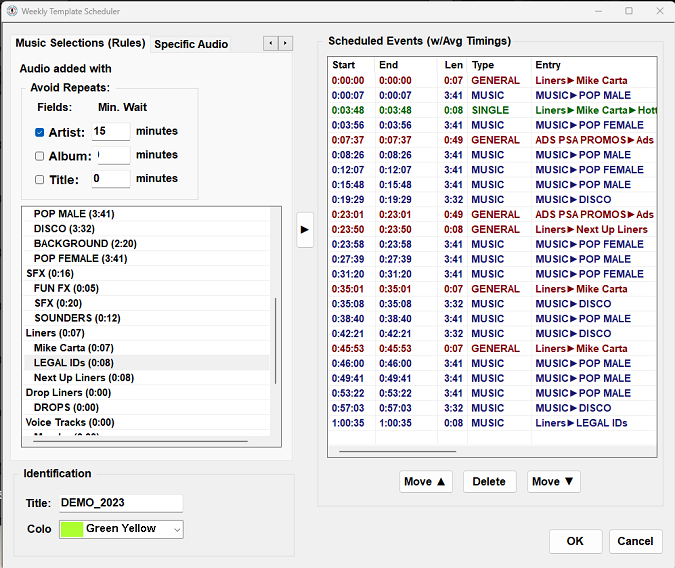

Figure 4: Template Scheduler example below shows the START time to equal an hour. This calculation uses the

Category average time of the music / audio in it.
