Playout of 24/7 Daily Playlists - Logs
The DJB Studio process for loading a daily Playlist (or Log) can be automatic.
For the Automatic load of the daily Playlist:
Step 1: Go to [MENU] / [Program Settings] / [Scheduling] TAB
Step 2:The [Use Scheduler] button should be "Selected" see Figure 1.

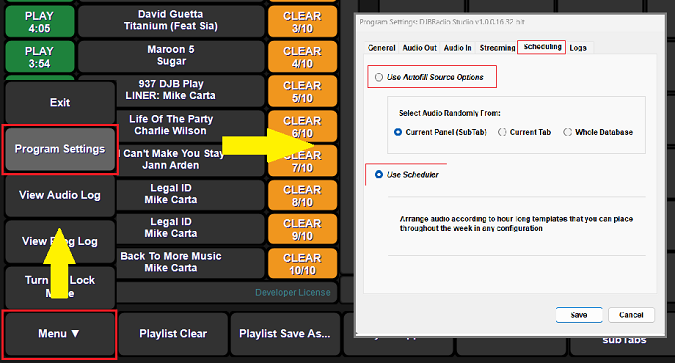

Figure 1: To generate 24/7 daily - weekly Playlists (logs) select the Use Scheduler Then CLICK [Save].
Step 3: Check the created template(s) one hour duration filling a one hour template of audio events see Figure 2:

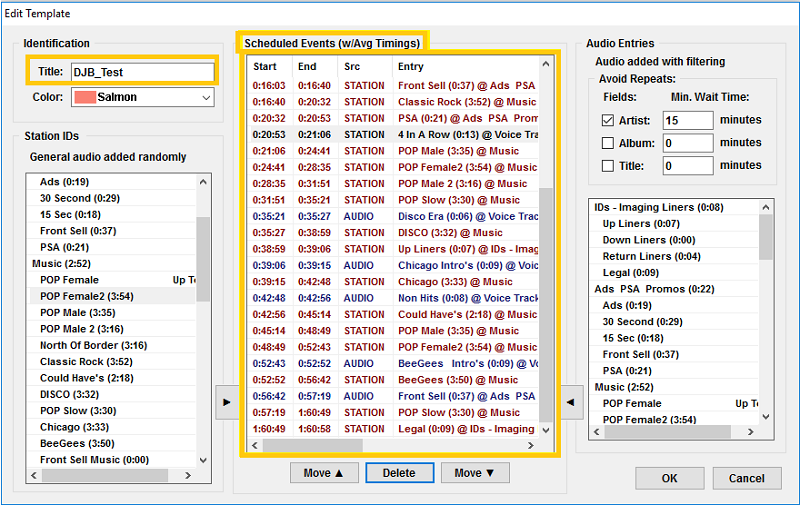

Figure 2: Illustrates the
DJB_Test one hour template of Scheduled Events
Step 4: The Template Grid should be filled with at lease one hour of selected events see Figure 2 & 3.

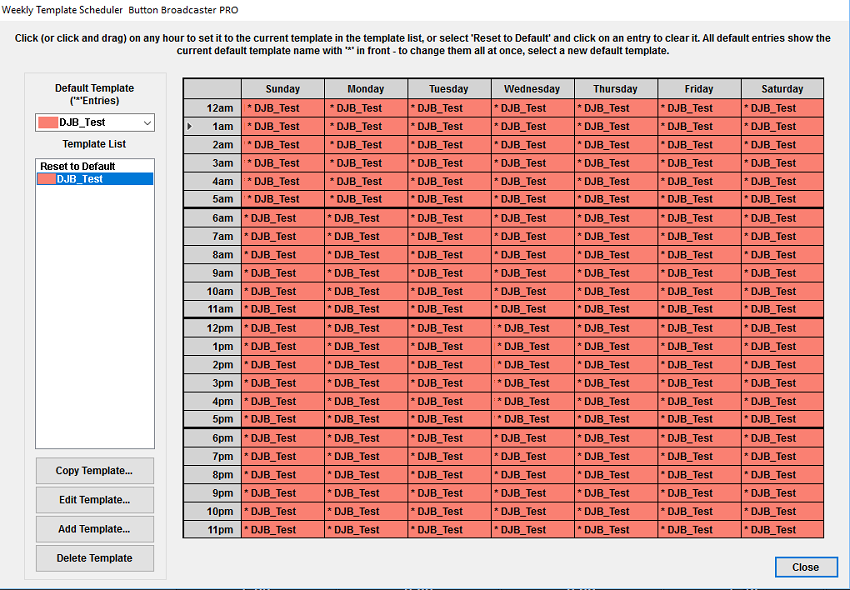

Figure 3: DJB-Test template is used to fill all hours of each day of the week in the Template Grid, example.
Step 5: The final step is to place the [Auto Sched] button in the "ON" position. See Figure 4.

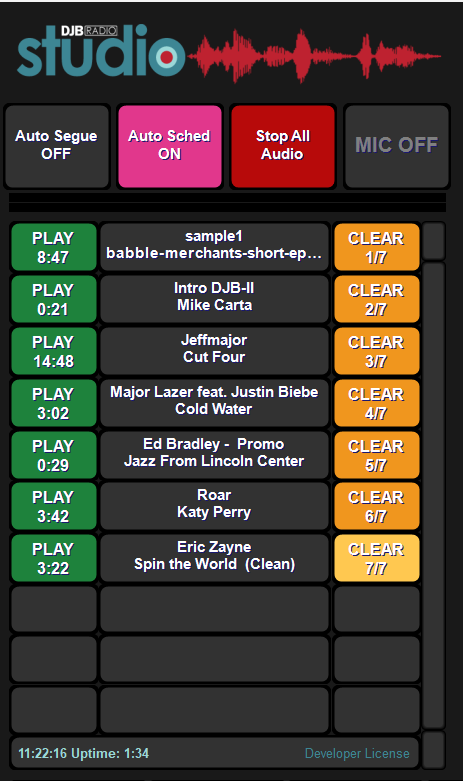

Figure 4: When the [Auto Sched] button is ON, the Play Stack fills each player.
Step 5: Put the [Auto Segue] button to the ON position and the system will play in a 24/7 mode. See Figure 5

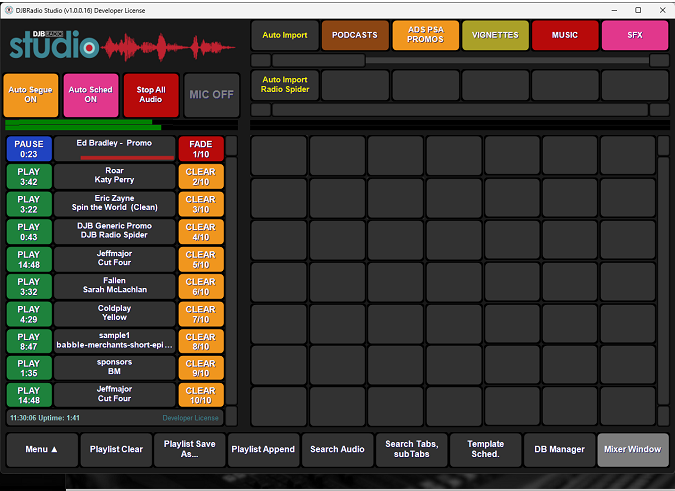

Figure 5: [Auto Segue] button ON, puts the DJB Studio Playe into automation with Auto Scheduling and
Playlist loading.
