The [MENU] [Program Settings] [Scheduling Tab] settingsreflect the [Weekly Template Scheduler] grid.
as illustrated in Figure 1.
To open the [Weekly Template Scheduler] grid go to the DJB Studio Player bottom row of buttons as illustrated.
CLICK the button and the [Weekly Template Scheduler] grid appears.
Note: The Weekly Template Scheduler requires the MAIN & SUB Tabs to have imported music & audio.

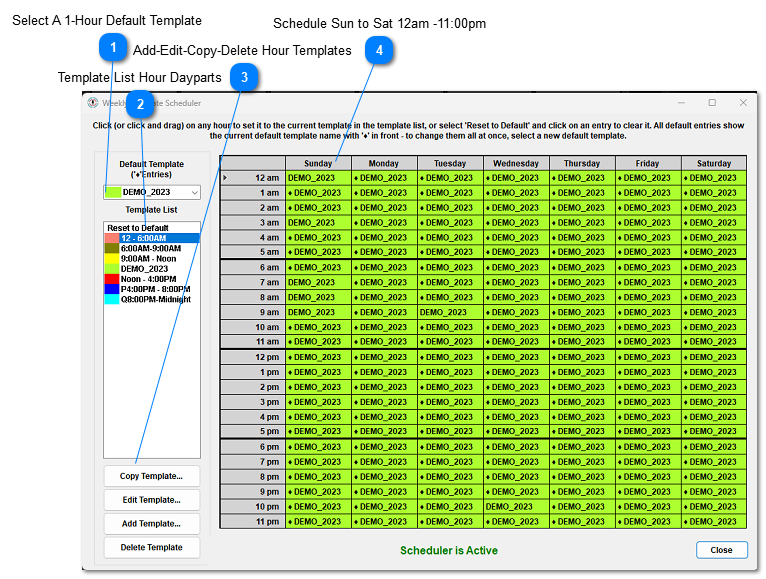

Figure 1: The Weekly Template Scheduler is a grid that displays hours of a day, days of the week from which
a 24 hour daily Playlist is generated for the DJB Studio Play Stack.
A Playlist for the Play Stack will be generated by the Scheduler Grid for the assigned hours posted.
The above Weekly Scheduler Grid shows just one hourly template used for all the hours of the day and the week

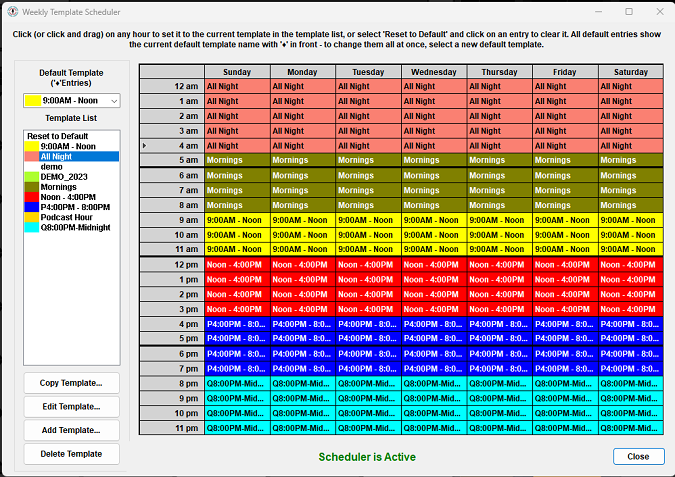

Filling this grid with user programming hour templates that are relevant to the time of day is the next step
in the use of the Scheduler Grid to generate your playlist for the Play Stack. - Continued: Let's build a Typical Music based Hour called demo and fill the Weekly Scheduler
Select A 1-Hour Default Template
CLICK on the the Popup Arrow > Select default template "demo" of the Weekly Template Scheduler

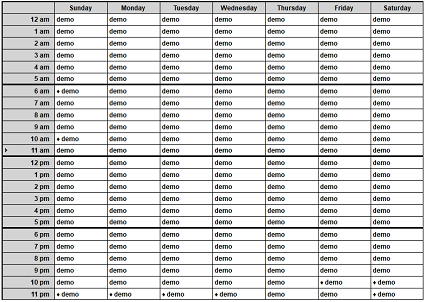

Then Drag Your Mouse over the Demo 2023 slots to change all hours to "demo" as in the illustration.
Use these buttons to build or modify or detlete an Hourly Daypart Hour Add Template: This button willopen the Template EditorwindowSee Next Topic Build A Template
Edit Template: Select the template from Topic(2) Template List to change your items in the selection.
Copy Template: If you like a template hour and want to Copy it and rename or modify it for another hour
Delete Template: If so desired, delete the template
