DJB Studio Player GUI Annotated & Explained

DJB Studio Player GUI Annotated & Explained
1

Automation & Go LIVE Buttons:

1. Automation & Go LIVE Buttons:
  • [Auto Segue]:  Puts the DJB Studio Player "Play Stack" in automated playout mode
  • [Auto Sched]: Fills the "Play Stack" with the Playlist audio by the Program Mode Selected
  • [Stop All Audio]: Stops ALL audio playing in both the Play Stack & HOT Button Panel
  • [MIC OFF]: Turns a connected Analog or USB Host Microphone ON or OFF to Go LIVE

2

DJB Studio MAIN TABS:

2. DJB Studio MAIN TABS:
  • There are 6 demo MAIN TABS of Genres or Audio Types that come as examples with the installer.
  • Important Note: Do not delete the MAIN TAB [Auto Import].
  • Use the Scroll Bar below MAIN TABS (See Fig.3 below) then drag right to see blank MAIN TABS
          With these blank TABS users can create new MAIN TABS for specific user programming.
  • All MAIN TABS can be modfied text & content wise to further suit the programming of the user.
  • DJB Studio demo MAIN TABS come with SUB TABS with audio content in them for examples.
     NOTE: The demo content is intentional lowest size 128 mp3 kbps and is provided for demo only.




DJB Studio MAIN TABS Features:
  • [Auto Import]: MAIN TAB has ability to auto import from ftp or Dropbox sites using DJB Radio Spider
          (See Auto Import Section for Setup)
  • [PODCASTS]: MAIN TAB provides a SUB TAB plus a blank "Hot Button Panel" that users can populate
         new PODCAST recordings by Drag n' Drop of the recorded audio items.
  • [ADS PSA PROMOS]: MAIN TAB provides a SUB TAB plus a blank "Hot Button Panel"
         that users can populate advertising recordings by Drag n' Drop of audio items
  • [Vignettes]: MAIN TAB provides a SUB TAB plus a blank "Hot Button Panel" that users can populate
          short recordings by Drag n' Drop of audio items
  • [Music]:  MAIN TAB provides a SUB TAB plus a blank "Hot Button Panel" that users can populate
          with music by Drag n' Drop of audio items
  • [SFX]: MAIN TAB provides a SUB TAB plus a blank "Hot Button Panel" that users can populate with
         sound effects by Drag n' Drop of audio items
3

MAIN TABS Scroll Bar:

Click & slide the Scroll Bar to expose other MAIN TABS or blank MAIN TABS to create new genres
 of audio for programming. .

4

DJB Studio SUB TABS:

4. DJB Studio SUB TABS:
  • Illustrated are Pre-Made SUB TABS for each MAIN TAB that come as examples with the Installer.
  • Use the Scroll Bar below the SUB TABS then drag right to see entered or blank SUB TABS that users
         can create for specific Categories.
  • If users CLICK on a SUB TAB the audio items in each Button Panel appear on the "Hot Button" panel that
         are relative to the MAIN & SUB TABS.
  • Color matches can made by users based on keeping SUB TABS & BUTTON PANEL colors the same
        for ease of reference on a quick glance.
5

SUB TABS Scroll Bar:

Click and drag the Scroll Bar slider right to expose other SUB TABS or blank SUB TABS to create
     new CATEGORIES of audio.
6

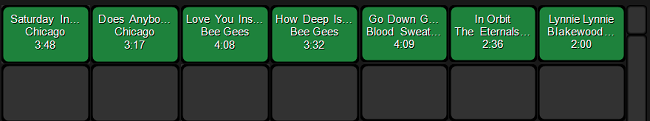

MAIN+SUB TAB HOT BUTTONS:

Each HOT BUTTON represents a title, artist & album of audio drag n dropped over the HOT BUTTON.
Note: Some are BLANK and need audio while above illustration shows the top row of Buttons
    are populated with audio.    There are 49 HOT BUTTONS per SUB TAB.

Continued:



7

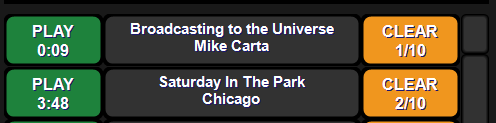

DJB Studio PLAY STACK:

7. DJB Studio PLAY STACK:
The PLAY STACK with the DJB Studio DEMO comes with examples of music as scheduled
     by the DJB Studio Scheduler
  • PLAY STACK Features:
  • PLAY STACK comes with PLAY & CLEAR / FADE buttons so that users can interact in LIVE
         or automated modes
  • PLAY STACK allows items to be Drag n' Drop into a slot from the HOT BUTTONS
  •  PLAY STACK when [Auto Sched] is active, fills the audio from the built in audio & log SCHEDULER
  • PLAY STACK when [Auto Segue] is ON, will fill the 10 slots continuously by random select
         or from the log SCHEDULER.
8

DJB Studio NAVIGATION BUTTONS:



The Navigation Buttons give the users access for set-up, playlists, searches, scheduler, database edits
and open & close of the Virtual Mixer.

  • The MENU provides user access for Device Settings, Log Programming, Streaming, ASRUN log
         & Built-In Scheduler
  • The [Playlist Clear] & [Playlist Save] & [Playlist Append] are relative user functions for the
        PLAYSTACK
  • The [Search Audio] allows users in a LIVE scenario to quickly locate music or audio within the
                     DJB Studio database and then PLAY
  • The [Search Tabs, Sub Tabs] allows users in a LIVE scenario to quickly locate GENRES or
        CATEGORIES within the DJB Studio database.
  • The [Template Sched] takes users directly to the 24/7 Built-In SCHEDULER to manage daily
        & weekly log templates.
  • The [DB Manager] allows user control of HOT BUTTON audio, SUB TABS, MAIN TABS,
        to move, copy, delete    or duplicate.
  • The [Mixer Window] activates the VIRTUAL USB MIXER and puts it on screen or on a 2nd
         screen monitor.
  •  It opens or closes the MIXER on screen visual.

    Complete annotated explanation of the Navigation Buttons at the next Topic in this manual.
