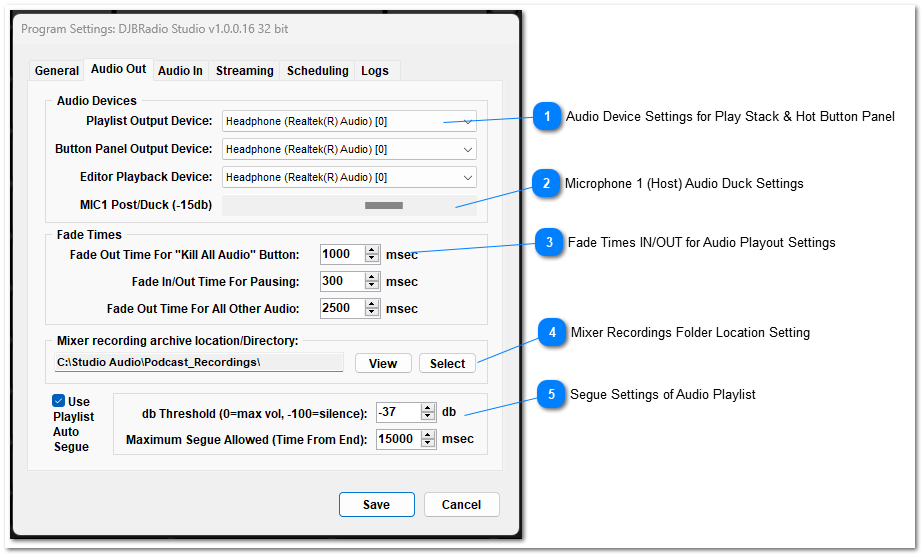

Audio Out: Settings for Devices, Fading, File Location
Proceed to Audio Out TAB and CLICK
Audio Settings for Playlist, Hot Buttons, wavEditor
Playlist Output Device: a.k.a. Play Stack audio device used is a user choice on a popup
Note: DJB Studio can play triple audio overlap cuts on the single stereo output
Playlist Output Device is your PROGRAM Output to you console or monitors
The Program Audio to the user Streaming Host, is electronic and sent via the Network Port
Button Panel Output Device: select the 2nd audio device in the popup. This audio device is for Audition.
While the Playlist is playing the log audio, the 2nd audio device allows user to play the HOT BUTTONS
A user can monitor / prelisten to a HOT BUTTON through a Cue Speaker or to your Headphones.
Editor Playback Device: when using the built-in wavEditor, the audio can be selected to the audio device that
was chosen for the Button Panel Output Device: can be Auditioned while the Playlist plays
It's Multi-Tasking at it's best. The 2nd audio devices gives users freedom to Edit & Audition while the Playlist plays.
Microphone 1 (Host) Audio Port/Duck Settings
This setting allows MIC 1 (Host MIC) to automatically auto duck the Audio Playout from the Playlist.
The Drag Bar (grey bar on the right) allows presetting of Playlist audio ducking levels as desired.
Practice: Press PLAY in the Playlist, then press MIC 1 ON. The Playlist faders will fade to the user setting
as in the MIC1 Post/Duck Drag Bar illustration. Adjust the Drag Bar until the Post/Duck is what is desired.
.

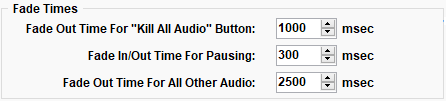

Fade Times IN/OUT for Audio Playout Settings
These Fade Times Settings are for the Playlist or HOT BUTTONS and they determine how the audio fades
on "Kill All Audio", Pausing The Item Playing in the Playlist, or HOT BUTTON when its clicked STOP while playing.
Mixer Recordings Folder Location Setting
IMPORTANT: Set the path of the Folder for Recordings as written in the illustration above.
Keep all your audio in the C:\Studio Audio folder. If you decide to move your audio to a larger drive
other than C:\, the change the path of the folder using the VIEW or SELECT buttons.
Segue Settings of Audio Playlist
This setting applies to the Playlist or Play Stack when it's in the AUTO Mode..
Adjust the setting to tighten or loosen the sound of your automation playing musc & other audio.
This setting is user friendly for achieving the sound of your Internet Radio station or Podcast.
.
