Audio In: Settings USB Mixer Channels & Mix Minus

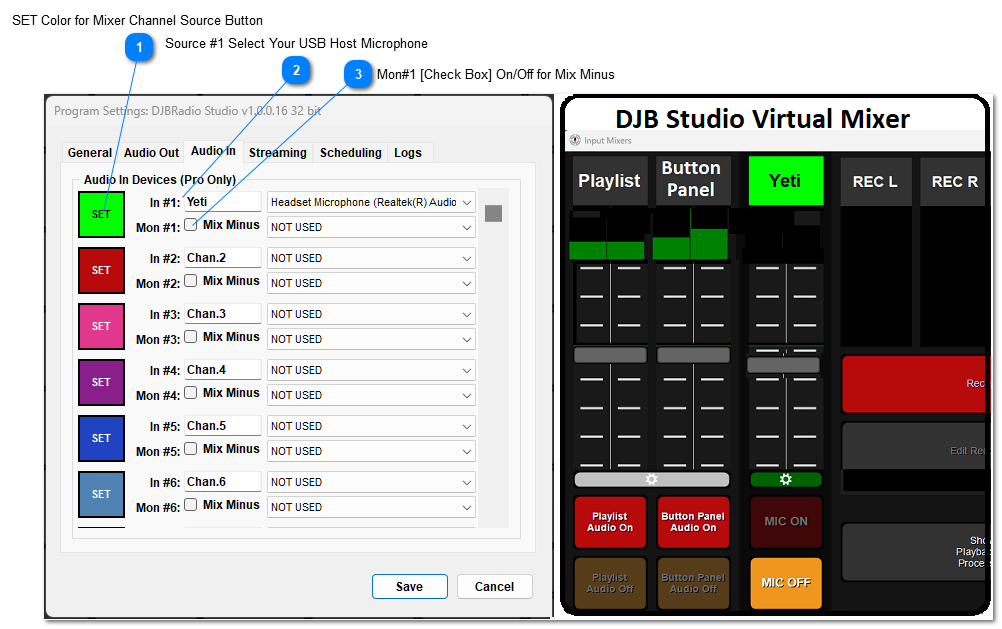

Use the [SET] Buttons as below to identify all your USB sources to appear in the Virutal Mixer channel ID.
[Playlist] & [Button Panel] take up the first two Virtual Mixer positions by default.
The Host Mic takes the third position as illustrated by [Yeti] as an example.
All other USB Sources (plugged in the USB ports) can each be Identified & Button Colored by the users.
A Mix Minus switch (User Selectable) is provided for the Mixer that omits the USB source from the headphones
preventing any monitoring loops or digital play delay for the Host and/or studio guests.

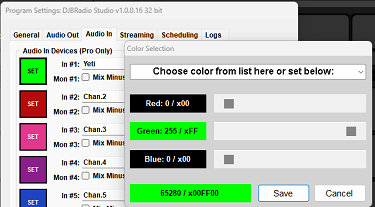

 SET Color for Mixer Channel Source Button See Mixer illustration top row of buttons. Click on [SET] button to activate the Color Palette popup:  Slide the bars for the color choices presented for the [SET] Button.
The [SET] button will change color based on your selection.
|
|
 Source #1 Select Your USB Host MicrophoneFirst, make certain a USB microphone is plugged in the USB port.
Then, CLICK in the In #1 [Field] and (Name your Host mic)
Then go next [Popup Select]
Select your Host mic (In our demo it was a Yeti) from the popup USB list
|
|
 Mon#1 [Check Box] On/Off for Mix Minus Click on the [Check Box] to activate the Mix Minus.
Mix Minus is a term for the removal of a USB source from the Mix in the headphones or monitors.
|
|
![3. Mon#1 [Check Box] On/Off for Mix Minus](drex_audio_in__settings_usb_mixer_channels___mix_minus_control_3.png){kind=small}
