Hour Shell Editor

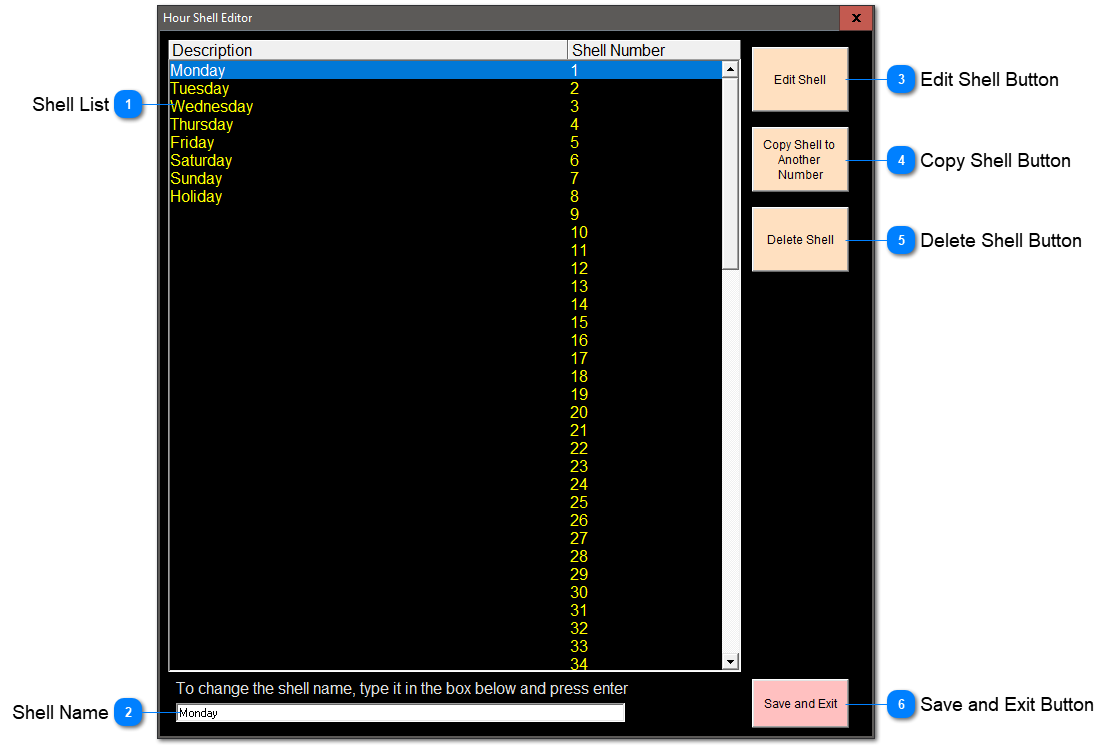

When you click on Edit Hour Shells, you see the Hour Shell Editor window.

Each shell corresponds to a single 24 hour day.

You can use the same shell if the programming is constant like a Monday-Friday shell.

You can also have specialized shells for days when things change like a Friday night football shell.

Don't forget weekend and holiday shells also.

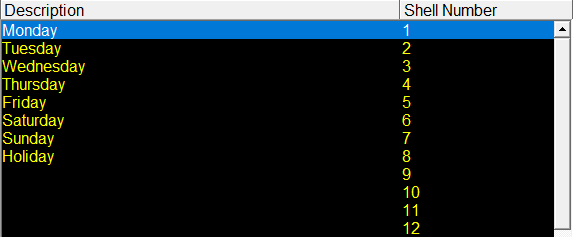

Shell List

This list contains all of the shells available to schedule.

There are 99 slots for creating shells.

You can click a shell and rename it by typing the new name in the box and pressing the Enter key.

When you create a new shell, this is where you name it.

This button opens the selected shell for editing.

This allows you to make a duplicate of an existing shell, very useful if most of the day is the same.

Click on a shell to select and then click to make a copy.

Enter the number you wish to use for the duplicate shell.

You can overwrite an existing shell if you want but there will be a confirmation dialogue to make sure you really want it.

As you might expect, this button will delete the selected shell.

Make sure you have selected the shell you want to delete before clicking.

There will be a confirmation dialogue before it actually gets deleted.

Saves any changes and exits back to the DJB Zone Scheduler page.
