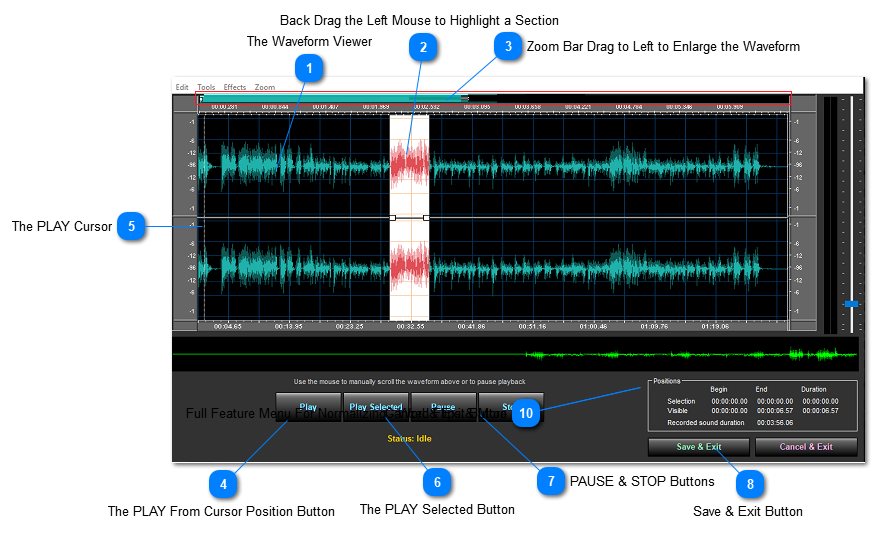

The wavEditor Annotated

The wavEditor Annotated
1

The Waveform Viewer

1. The Waveform Viewer
The Waveform View shows the Left & Right audio channels
2

Back Drag the Left Mouse to Highlight a Section

2. Back Drag the Left Mouse to Highlight a Section
The Selected Area can be scrubbed & auditioned with space tightened before a CUT is made..
3

Zoom Bar Drag to Left to Enlarge the Waveform

3. Zoom Bar Drag to Left to Enlarge the Waveform
Back dragging the Zoom Bar enlarges the waveform for a more accurate CUT position
Dragging the Zoom Bar to the right reduces the Zoom of the waveform.
4

The PLAY From Cursor Position Button

4. The PLAY From Cursor Position Button
The PLAY Button will play audio from the position of the large cursor.
5

The PLAY Cursor

5. The PLAY Cursor
Default position for the PLAY Cursor is at the beginning of the audio.
Move the PLAY Cursor with your mouse Grab n Drag the PLAY Cursor will PLAY from the
new position in the waveform.
.
6

The PLAY Selected Button

6. The PLAY Selected Button
The PLAY Selected Button does just that. It PLAYS the Selected Area in the waveform.
This feature allows the user to locate the perfect point to make a CUT by using the
Size Pointers Left Side - Right Side
Simply Drag these Size Pointerswith the mouse and PLAY Selected until you locate the favored
point of the CUT In and End of Cut.
Drag Left and Right to enlarge or reduce the Selected Area size. This feature gives users the
ability to Audition the CUT In point and CUT Out point using the PLAY Selected Button.
7

PAUSE & STOP Buttons

7. PAUSE & STOP Buttons
PAUSE button will pause the PLAY while STOP button will stop the PLAY of the Audio.
PAUSE button allows the user to stop the PLAY of the audio to find a CUT Point.
STOP button will cancel the CUT effort and return the Cursor to the Begin Point
of the audio.
8

Save & Exit Button

8. Save & Exit Button
Save & Exit will save the Audio Editing Work as generated by the user.
9

Cancel & Exit Button

9. Cancel & Exit Button
Cancel & Exit closes the audio file and cancels any editing work done.
10

Full Feature Menu For Normalizing - Word Flips & More

10. Full Feature Menu For Normalizing - Word Flips & More
For more details on audio editing, audio file normalizing and other audio production tricks please visit the
Topic  [wavEditor for Editing Imported & Recorded Audio]...
