Keyboard Mapping START STOP Overview
How to "MAP" (assign) your keyboard buttons to remote START / STOP (alternate push) the Audio HOT Buttons
Follow the process are described in Figure 1.

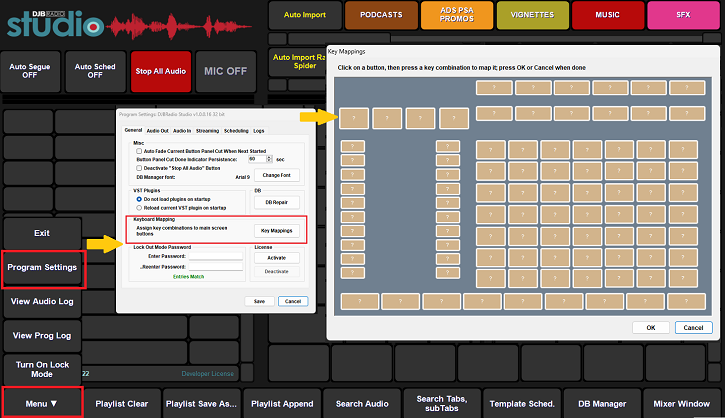

Figure 1: Illustration of Steps to open MENU, then CLICK on [Program Settings] then move to the Pop-UP
Keyboard Mapping then Key Mapping Panel.
The Key Mapping Panel displays the DJB Studio Player screen outline BLANK of any keyboard "MAPS"
or assignments.
Planning the next step:
Assigning the Keyboard Keys (Mapping)
There are many schemes that might apply to how to MAP the Keyboard to the Hot Buttons.
Our illustrations on the next Topic is simply an example.
Use your number keys for the Hot Buttons with Audio that are most likely to be used by remote start in your
LIVE Programming
Example: Station ID's, Promos, Jingles, whatever is in your station programming that is needed to be PLAYED
repeated with ease.
Note: The Keyboard Key Mapping is relevant to every Hot Button panel that you open - the key you pick
will look for the same position and will then PLAY when you push the assigned keyboard key to that position on
the screen.
It's very important to PLAN the assignment of Keyboard Keys for this feature, FIRST!
Studio Player screen in front of you. So, lets assign the number pad first.
Caution: Things that will prevent the number pad from working effectively
-
The "Num Lock" deactivates the number key and does not allow assignment.
-
The same condition will apply if you happen to turn the "Num Lock" OFF.
-
If you have dual screens and you are working on some other app, the number pad will only work START / STOP
-
if the DJB Studio is the current active app.
-
So make certain the Num Lock is ON and your DJB SDJB Studio Player edges to make the app front and center.
Continued: Assign the Keyboard Keys to Start/Stop Audio
