DJB Studio Virtual Mixer Annotated

Mixer Top TABS & VU Meters

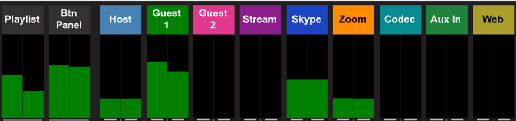

Figure 1: Illustrated are the Channel ID's and VU Meters that show channel audio levels.

Each connected USB or Analog Input channel of the mixer can be user identified in the
Navigation Buttons of the DJB Studio Player [Menu]

then open

next to open is the Popup below

[Audio In] Shows each input for setup & label the Mixer channel ID Buttons .
COLOR [Set] button pops up a color pallette user selectable
In #1: [Host] as an example; text can be by the name the users choose.
"Yeti USB mic" is a popup that lists the USB port devices connected
Mon #1 [Click] On/Off Mix Minus.excludes the USB source from listening to itself in the monitors
"NOT USED" USB source popup list of devices to be Mix Minus isolated in the monitors.
Once selections are done, continue to set up the remainder of connected USB devices.

Top

Mixer Input Channels

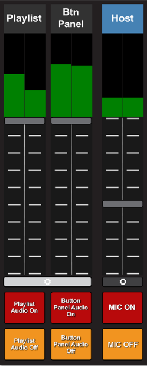

Illustrated are fader knobs that slide up & down. Playlist & HOT BUTTON panel faders are shown full up
while the HOST mic is about half up. The Buttons (red & yellow) below the faders are channel On/Off Buttons.

Top

Mixer DSP PopUp

The slim button(s) with the (*) are located above the channel On/Off are for future development

of channel DSP (EQ & Audio Processing).

Top

Mixer Record-Edit

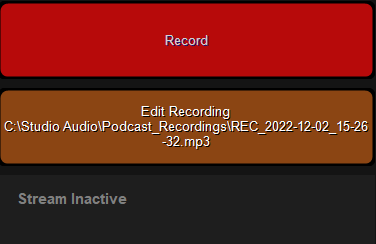

[Record] button is to activate the Mixer to Record the mix of the DJBStudio Player & Mixer.

The [RECORD] button has an On/Off user action.

The [Edit Recording] button when ON, activates the DJB Studio wavEditor.to edit the recorded file.

The [Edit Recording] button also shows the folder location & file name of the recorded file to be edited.

For complete details on the DJB Studio wavEditor see Section [[How to Use the wavEditor]]

Top

Mixer "Stream Active" Program Meter

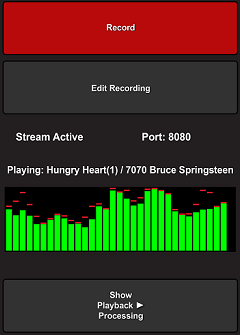

This program (Stream Active) graphic VU meter shows the levels of the DJB Studio Player playout stream
More on the playout capability for Internet streaming & a stream HOST further in this manual. .

Top

Mixer Show Playback Processor

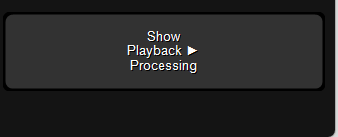

Click on [Show Playback Processor] button to activate the Program Playback audio processor
(audio industry known as a .vst) The .dll vst comes with your download of DJB Studio

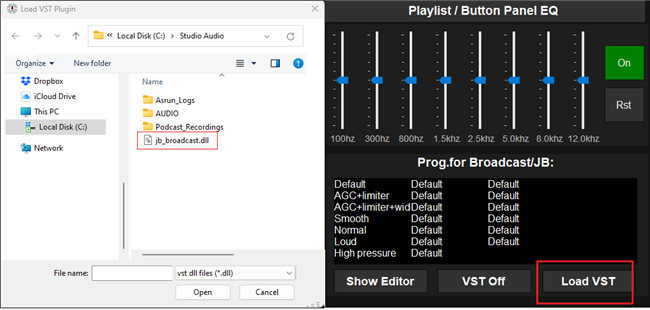

Illustrated above is the jb_broadcast.dll vst which will load with the [Load VST] button click and zero in

on the jb_broadcast.dll which is found in the Studio Audio folder.

Top

Program Processor Show (Editor) Processor

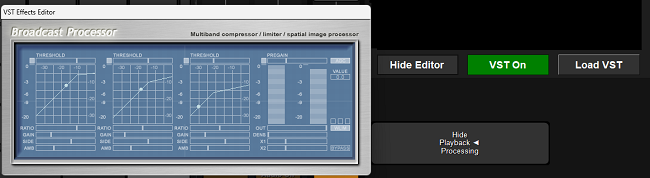

The best of all is that VST Editor Window loads with default settings allowing users to adjust the settings.

The VST Editor Window is live, so users can tweak the settings with your mouse using your ear for
best settings for your DJB Studio Playout program sound.
