Satellite Grid Settings
Once you have created all of your Input/Output controls, you need to tell the Grid, which controls to use during which hours.
Just select a day of the week and hit edit and type the number into the correct hour.
Once you have setup your Satellite Input/Output Controls, you will need to assign those controls to the hours that you wish to use them in.
If you are a Satellite Music Station, you may be using several IO Controls. One for each Satellite Jock.
During hours that you are not on any Satellite, simply place a 0 (zero) in the field.
To edit these days of the week, select the day of the week and click the edit tab at the top.

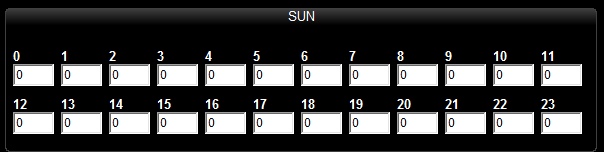

 I/O Controls Selection
Place a 0 (zero) in non satellite hours and place the Satellite IO Control Number in the hours that need controlled.
|
|

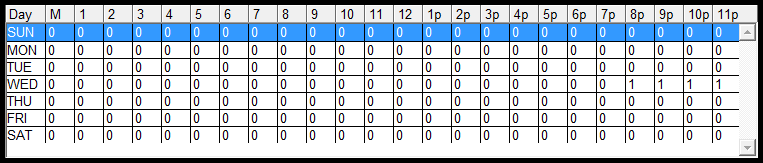

 Grid Display and Day Select
To select a Day to Edit in the I/O Controls Selections simply click on it.
This display also shows the Grid selected for Evey Hour of Every day
|
|
 Save
Press to save the Day you have been editing
|
|
