How to Use Pause All & Stop All Buttons

The Play Stack is managed by four buttons for:

[Pause All] audio items in the Play Stack See Figure 1
[Stop All] audio playing in the Play Stack See Figure 2
[Auto Segue] playlist loading into the Play Stack See Next Section
[Auto Segue] (automation) from playstack audio item to next audio item See Next Section

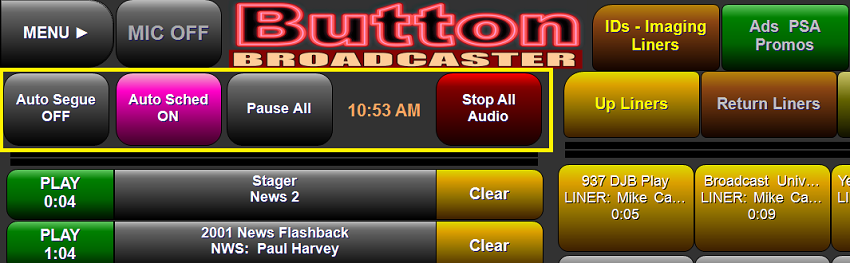

Figure 1: The four buttons that control the Play Stack are illustrated above.

[STOP ALL] button affects all items, including playlist audio items playing

[STOP ALL] also turns OFF [AUTO SEGUE] so audio items in the Play Stach do not start playing again)

[PAUSE ALL] button affects all audio items in the Play Stack, including the ones in the Play Stack that are playing the audio item.

The [PAUSE ALL] as in Figure 1 changes to [PLAY ALL] in Figure 2 when activated (alternate action)

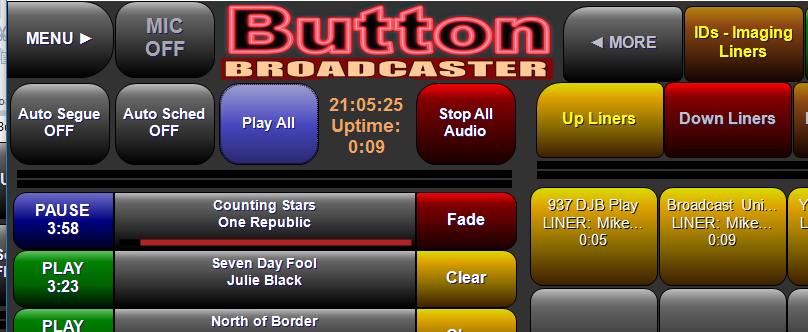

Figure2: Note: The [PAUSE ALL] button is activated, lights up as [PLAY ALL] and BLINKS waiting for DJ (user) press

the button once again to resume play of audio item..

Figure 3 below Illustrates the Play Stack [PAUSE] function

Figure 3: The above illustration shows a Play Stack audio item playing stopped by [PAUSE] activation

Note: if a Play Stack audio item is paused, the [PAUSE ALL] PLay Stack control button is disabled.

If [PAUSE ALL] is ON, the Play Stack [PAUSE] buttons are then inactive
