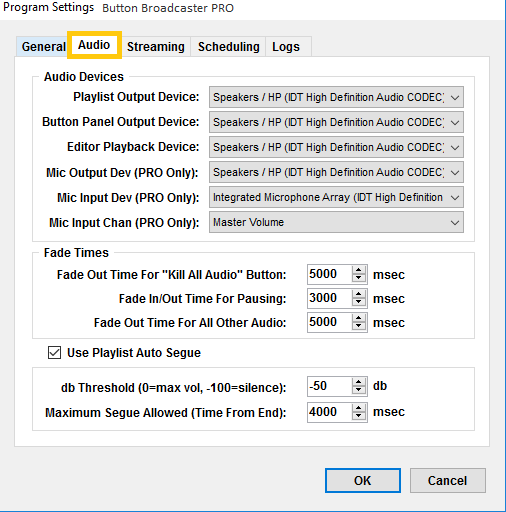

The MENU/Edit/Program Settings/ AudioTab diplays three internal sub sections of audio card & playout management
Figure 1: Use of the 3 Sub Sections of Audio Tab are as follows:
-
-
Playlist Output Device - Default locates the computer's on board sound card for Play Stack play out.
-
Note: One Output Device = Triple Audio Play Overlapped
-
Button Panel Output Device - Default locates the computer's on board sound card
-
Note 2: One Output Device = Triple Audio Play Overlapped
Note 3: Dual sound cards are supported:
Add a USB sound card (Windows compatible) and send the Play Stack (Playlist) output to the new audio device
or set the extra audio device to the Button Panel. This set-up gives users discrete playout Play Stack & Button Panel.
-
Editor Playback Device - Most automation systems require a Production audio editor to produce audio content.
-
DJB BBPro includes the
Audacity Audio Editor although BB2 & BBPro work with most Windows compatible
editors. Assign the editor playout to the same audio device as Button Panel since any automation will happen
through the Play Stack.
ii. DJB BBPro WAVEditor can also be assigned to the Button Panel audio device allowing a discrete playout for
listening to editor scrub and playout while the Play Stack is in Auto Segue mode.
-
Mic Output Device (BBPro Only) - reflects using a USB microphone
-
Mic Input Device (BBPro Only)- reflects using USB mic or on board device mic
-
Mic Input Channel (BBPro Only) - reflects using USB mic or on board device mic
------------------------------------------------------------------------------------------------------------------------------------------------------------------
-
-
Fade Out Time for "Kill All Audio" Button - Default time 5000 msec User adjustable if desired
-
Fade In/Out Time for Pause All (Pause Buttons) - Default time 3000 msec User adjustable if desired
-
Fade Out Time For All Other Audio - Default time 5000 msec User adjustable if desired
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
-
-
db Threshold (0=max vol, -100=silence): - Default -50 db User adjustable for tight segues or more relaxed segues
-
Maximum Segue Allowed (Time of End): - Default 4000 msec User adjustable
-
Note: Segue times do not have to entered into the audio database. The BBPro & BB2 Auto Segue system anticipates
the segue point based on the user settings as above.
