Configure STLWare RxPro

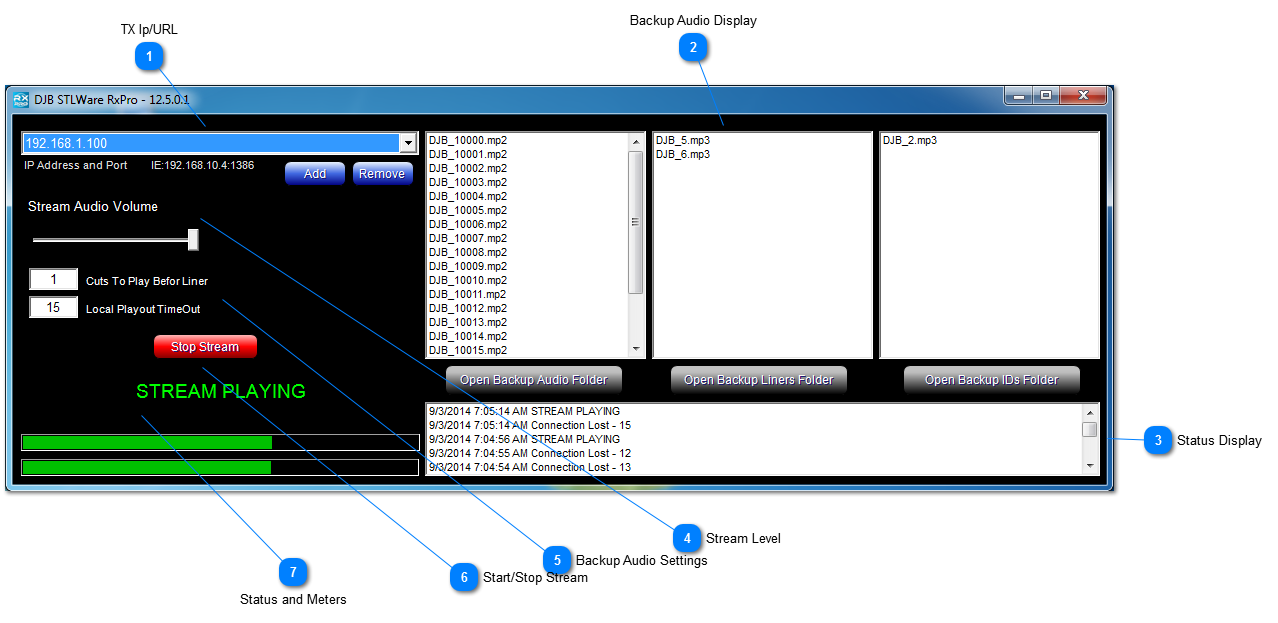

STLWare RXPro Main Screen
TX Ip/URL
This drop down allows you to select a TX Ip address or URL to connect to. Typically you would enter an IP address and a port based on the settings of your TX
The system can also Recieve from a URL if you have a streaming server setup to provide the audio source.

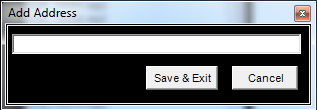

To add a URL simply press the add button, the add window will apear
To remove an IP/URL select the desired IP/URL in the drop down box and press remove
Shows technical information and a log of the software's actions. The information logged here is also logged to the Disconnect log in the programs install folder

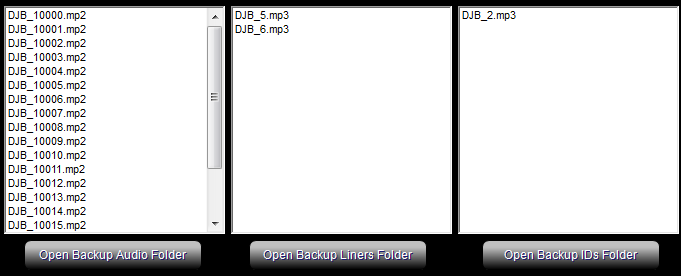

The cuts to play before a liner is how many of the General Backup audio cuts to play before it runs one from the liners group.
Local Playout Timeout is how many second the stream needs to be disconnected before the local playout begins, the timeout is counted down in the status display when the stream is disconnected

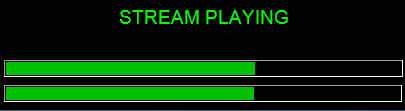

Displays the Stream Status and audio meters for the playback, If playing local Audio a new status line will appear with information about what backup audio is playing
