Configure STLWare Rx

Configure STLWare Rx

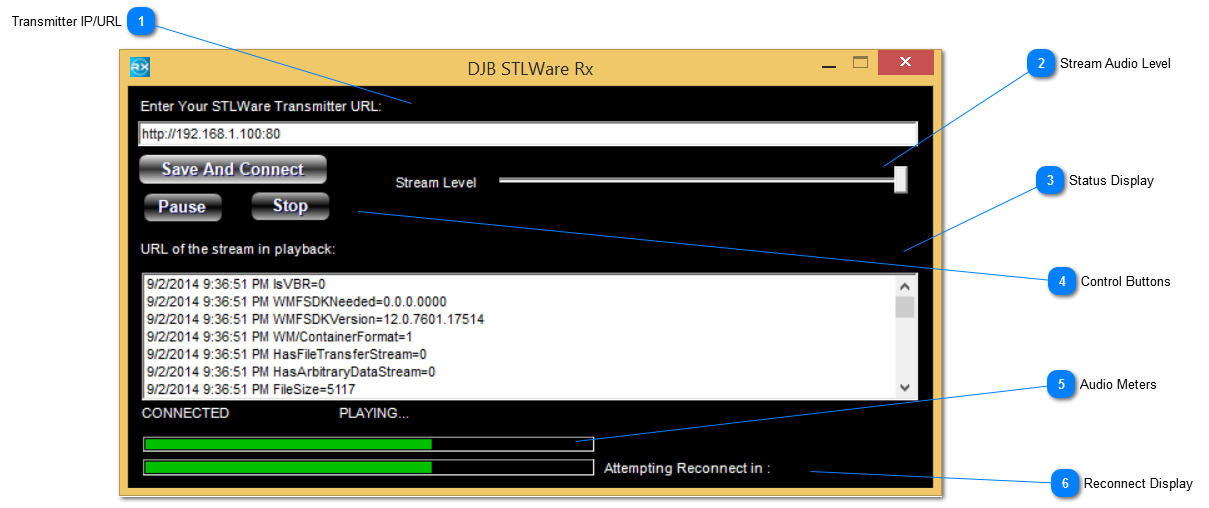

STLWare Rx Main Screen
1

Transmitter IP/URL

1. Transmitter IP/URL

Enter the HTTP:// address and port of your TX machine here, this can also be a URL if you are using a stream server to host your TX stream
2

Stream Audio Level

2. Stream Audio Level

The Slider allows you to control the voluem of the Stream
3

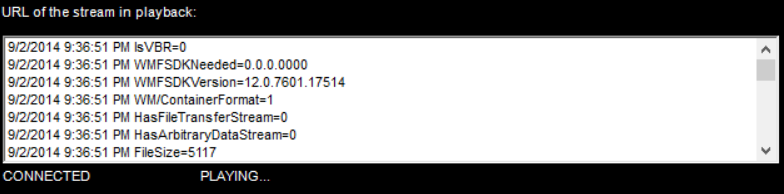

Status Display

3. Status Display

This area of the stream shows the stream information , if the stream is connected and if the stream is playing.  The Informationis also logger on a daily basis to the STLWare Log in the programs install folder

4

Control Buttons

4. Control Buttons

Once a URL is entered, pressing save and connect will save the URL to the configuration file for use if the software is restarted.  Pause will pause the stream playback and Stop will stop the stream playback
5

Audio Meters

5. Audio Meters

Audio Meters showing the level of the stream Audio being played
6

Reconnect Display

6. Reconnect Display

If the connection to the stream is lost this area of the screen will show a countdown till the software attempts a reconnect
